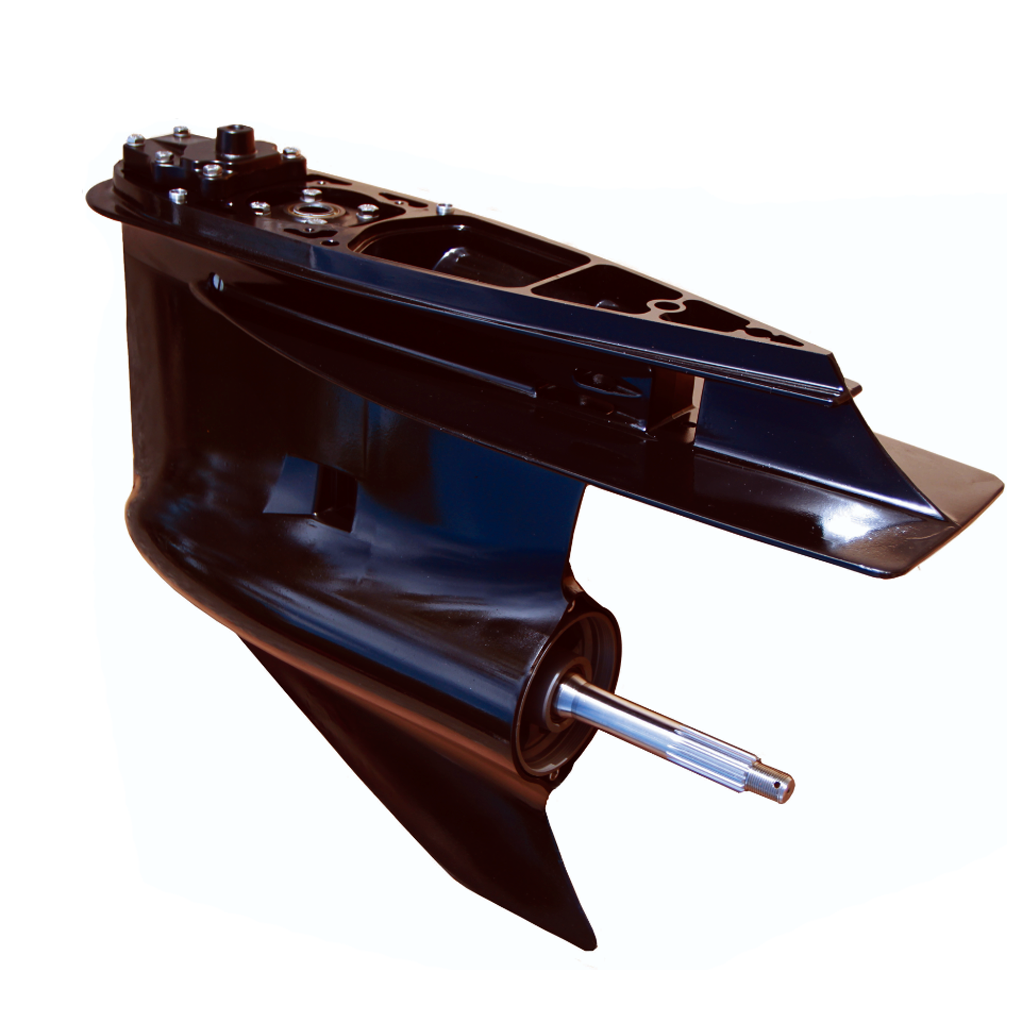

Johnson-Evinrude Replacement Lower Unit | 1.85 | Magnum Unit| 90-316-A
SEI Marine
MPN : 90-316-A
Overview & Technical Specs
| Product Overview | |
|---|---|
| Fits | Johnson-Evinrude |
| OEM Part # | 5009259-5009260 |
| Unit Type | Lower Unit |
| Warranty | 3 Year Fault Free Warranty |
| Weight | 55.0 lb |
| Item Condition | New |
| Technical Specifications | |
| Gear Ratio | 1.85 |
| Rotation | RH |
| Shaft Length | 2 Piece (separate) |
Increments of 1
Minimum of 1
Maximum of
10Low stock
10In stock, ready to ship
Sale price
$1,395.00 USD
-100%
Regular price
Regular price
$1,395.00 USD
Unit price
per
Johnson-Evinrude Replacement Lower Unit | 1.85 | Magnum Unit| 90-316-A
Sale price
$1,395.00 USD
Regular price
Regular price
$1,395.00 USD
Unit price
per
Couldn't load pickup availability
Fast Shipping
Excellent Support
Best Deals
Add recommended kits:
Checking fitment for
90-316-A…Get notified by email when this product becomes available
Have a question?
Description
Replacement Lower Unit — Johnson/Evinrude® Magnum & Magnum II (Mag II)
Quality aftermarket gearcase designed as a direct replacement for Magnum II (Mag II) lower units on select Johnson/Evinrude® outboards.
Compatibility Notes
- Direct bolt-on replacement for Magnum II (Mag II).
- If replacing the original Magnum (first generation), remove the alignment pins from the new lower unit during installation.
Finish
Black only (no other color options).
What’s Not Included
- Upper drive shaft
- Shift shaft
- Water pump
- Water-intake screens
Important Water Pump Kit Info (3.4L Engines)
Our 90-306-01K water pump kit is not a direct replacement for 3.4L engines. The correct kit is OE# 5007972 (available from Evinrude).
If you choose to use 90-306-01K on a 3.4L engine, complete the following adjustments:
- Do not install the water-tube grommet in the housing.
- Reuse the O-rings from your original water tube.
- Reuse the water-pump housing cover (the plastic tube attached with two screws).
Replaces OEM Part Numbers
- 5007699
- 5007705
- 5009081
- 5009082
- 5009259
- 5009260
Helpful Tips
- Confirm fitment by model and serial number before ordering.
- Fill with OEM-spec gear lube and use a fresh seal/gasket kit at install.
